150Nm3 KZO-150 Oxygen Plant
Cryogenic Oxygen Plant 150Nm3/h
1.1 Basic Design Conditions
1.1.1 Atmosphere Conditions:
Atmospheric pressure ～638mmHg
Atmospheric temperature 5-40℃
Relative humidity 63-90%
Air conditions:
O2 component of Atmospheric: 17.59 %
CO2 of Atmospheric: ≤350 ppm
CnHm of Atmospheric: ≤3 ppm
SO2 and H2S: ≤5 ppm
Fuente de alimentación：
Voltage: 380V/220V
Frequency: 50HZ
Potencia total: 299.5KW
Main Performance Data
Oxygen output: 150Nm3/h
Oxygen Purity: 99.6%
Working pressure: <1.05Mpa
Starting time: 8～10h
Potencia total: 299.5KW
Fuente de alimentación: 380V/220V/50Hz

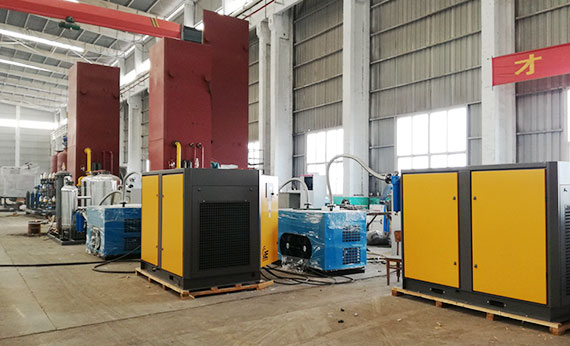

Main Equipments
Screw Air compressor 1 set
Include: Main machine 1 set, Oil-gas separator 1 set, Cooler 1 set, PLC automatic controller 1 set, 250KW electric machine 1 set, documents etc.
Purifier 1 set
Include: Absorber 2 pc, heater 1 pc, filter 1 set, Control panel 1 set, Pipe and valve 1 set, technical documents etc.
Turbine expander 1 set
Include: Main machine 1 set, filter 1 set, Inlet and outlet muffle 1 set, survey speed explore head 1 set、Instrument 1 set, Valve and pipe 1 set, document etc.
Rectification Column 1 set
Include: Main body 1 set, Perlite 1 set, cold-box 1 set, valve and pipe 1 set, instrument 1 set, document etc.
Refrigerator 1 set
Include: Main machine 1 set, evaporator 1 set, water separator 1 set, instrument 1 set, pipe and valve 1 set, documents etc.
Liquid Oxygen Pump 1 set
Include: Main machine 1 set, electric machine 1 set, Instrument 1 set, documents etc.
Oxygen Filling Unit 1 set
Include: Main machine 1 set, Instrument 1 set, documents etc.
1.3.8 Connecting pipe 1 set
1.3.9 Low-voltage Distributor 1 set
1.3.10 Molecular sieve 1 set
1.3.11 Oxygen On-line digital purity analyzer 1set
1.3.12 Spare parts 1 set
1.4 Technical Data for Each Plant
1.4.1 Air Compressor
Type: Spray-oil, Screw
Flow: 38.5m3/min
Working pressure: <12bar
Weight: 6500Kg
Dimensions: 4000×2050×2120 mm
Power: 250KW
1.4.2 Refrigerator
Model: HJYL-2000/10.5
Flow: 2000m3/h
Pressure: 10.5 bar
Power： 12KW
1.4.3 Purifier
Model: HXK-2000/12
Flow: 1600m3/h
Absorb agent: 13X Molecular sieve
Working pressure: 12bar
Switch time: 8h
Heater Power: 32Kw
1.4.4 Turbine Expander
Model: PLPK-18.5/4-0.32
Flow: 1100m3/h
Inlet temperature: 130K
Inlet pressure: 0.4Mpa
Outlet pressure: 0.032Mpa
1.4.5 Rectification Column
Oxygen output: 150Nm3/h
Oxygen Purity: 99.6%
Working pressure: 1.05Mpa
Working period: 360days
Dimensiones globales: 1600×1600×8000mm
1.4.6 Bomba de Líquido
Modelo: BPO-100-300/20
Flujo: 100-300L/h
Presión máxima de entrega: 200bar
Potencia: 5.5KW
1.4.7 Colector de llenado
Presión de Trabajo: 20Mpa
Cabeza de conexión: 24pcs
Peso: 298Kg
Dimensiones: 3950*650*640 mm
